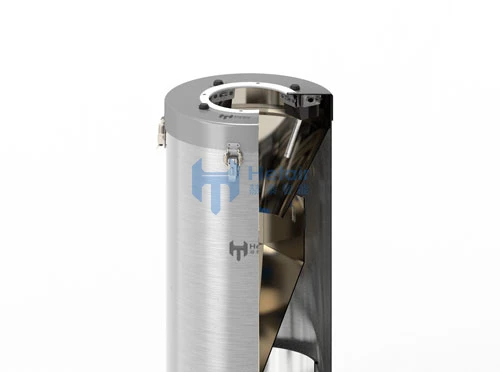

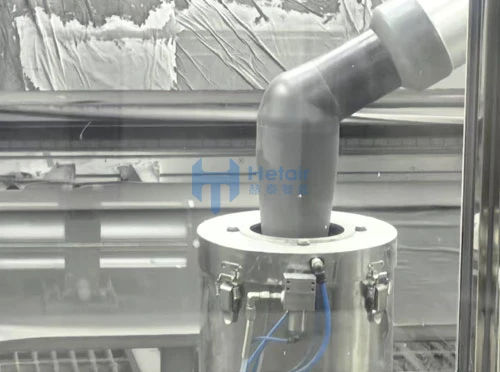

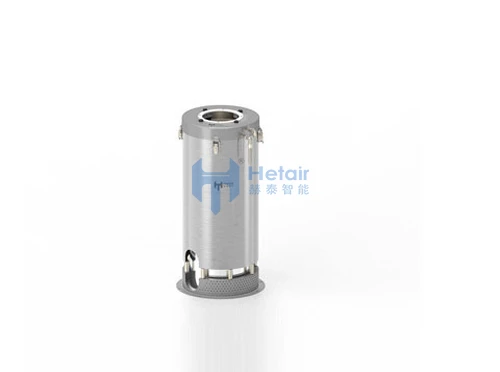

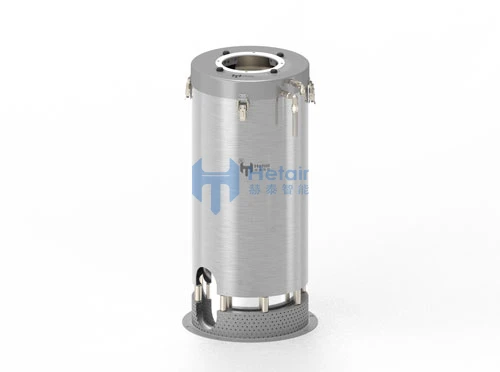

Automatic Bell Atomizer Cleaner
Automatic Bell Atomizer Cleaner
automatic-bell-atomizer-cleaner-2
Automatic Bell Atomizer Cleaner
Automatic Bell Atomizer Cleaner
Automatic Bell Atomizer Cleaner
Automatic Bell Atomizer Cleaner
Automatic Bell Atomizer Cleaner
automatic-bell-atomizer-cleaner-2
Automatic Bell Atomizer Cleaner
Automatic Bell Atomizer Cleaner
Automatic Bell Atomizer Cleaner
Automatic Bell Atomizer Cleaner

Automatic Bell Atomizer Cleaner

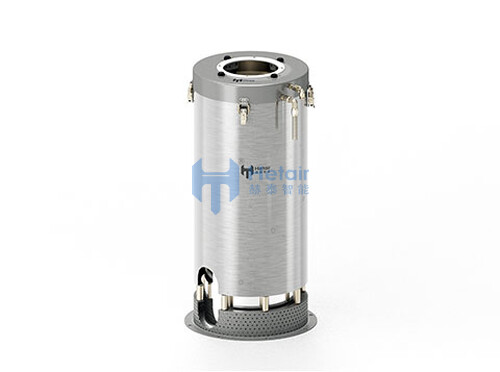

The Bell Cleaner is an automated cleaning device specifically designed for the painting industry, used to efficiently clean rotary bells (rotating atomizers) during the painting process. The equipment is controlled by an automated program, combining high-pressure rinsing, solvent cleaning, and rapid drying functions to quickly remove residual paint, solvents, and other contaminants from the rotary bell, ensuring stable painting quality and extended equipment lifespan.

Quote Now

Automatic Bell Atomizer Cleaner Specifications

SpecificationsHT-CCV-3.0
ModelHT-Clean Bell HD002
Technical Parameters
Cleaning Air Pressure2-4 bar
Cleaning Agent Pressure3-4 bar
Cleaning Agent Switch Valve Pressure3-5 bar
Cleaning MediumWater, Solvent, and Air


Core Advantages


Efficient Cleaning, Time-Saving

Multi-stage cleaning process (main wash, rinse, drying) significantly reduces manual cleaning time, with a single cleaning cycle completed in seconds, shortening cycle time.

Reduces downtime, increasing production time and improving efficiency.

Supports multiple cleaning modes (Quick wash, deep clean) to accommodate different paint types (water-based, solvent-based, UV paint, etc.).


Intelligent Operation, Reduced Labor Costs

Fully automated control with remote operation, eliminating the need for dedicated personnel and reducing human intervention and errors.

Integrates with automated painting management processes, allowing customizable cleaning parameters (time, pressure, flow rate, etc.) and storing multiple presets for easy switching.


Eco-Friendly & Energy-Efficient, Minimized Waste

Recyclable cleaning solvents with extremely low consumption, reducing material costs.

Enclosed design prevents secondary pollution and minimizes solvent evaporation, meeting environmental standards and improving workshop conditions.


High Compatibility & Stability

Compatible with mainstream rotary bell brands (Sames, Dürr, ABB，etc.), ensuring broad applicability.

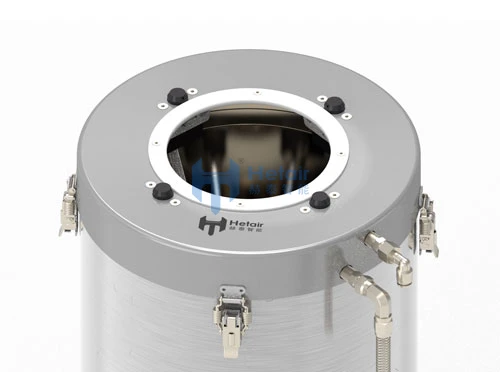

Bottom spring design enables a soft-landing effect when the rotary bell approaches, reducing damage.

Constructed with corrosion-resistant materials (Stainless steel, PTFE seals，etc.), ensuring long-term durability and low failure rates.

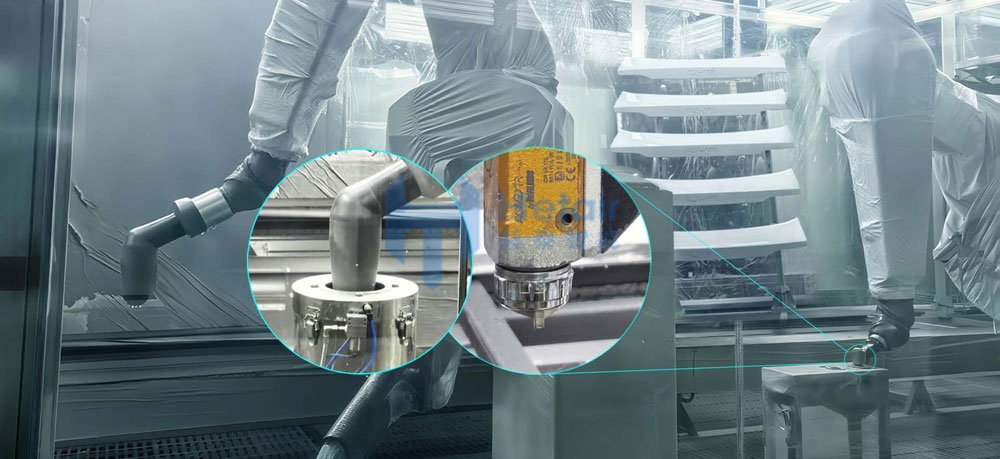

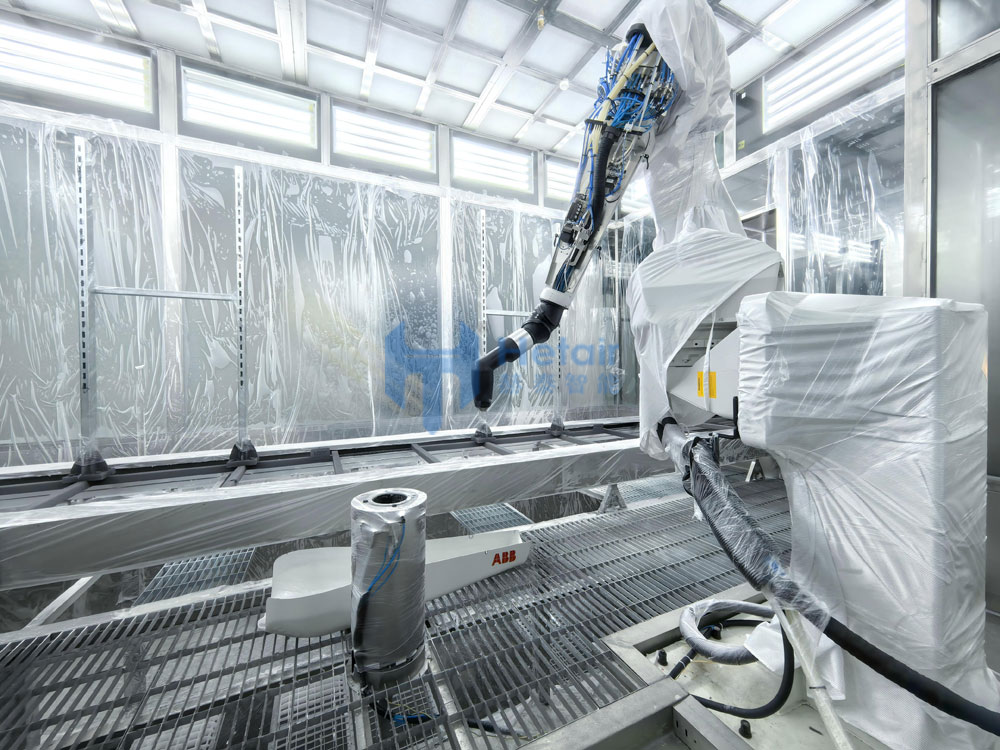

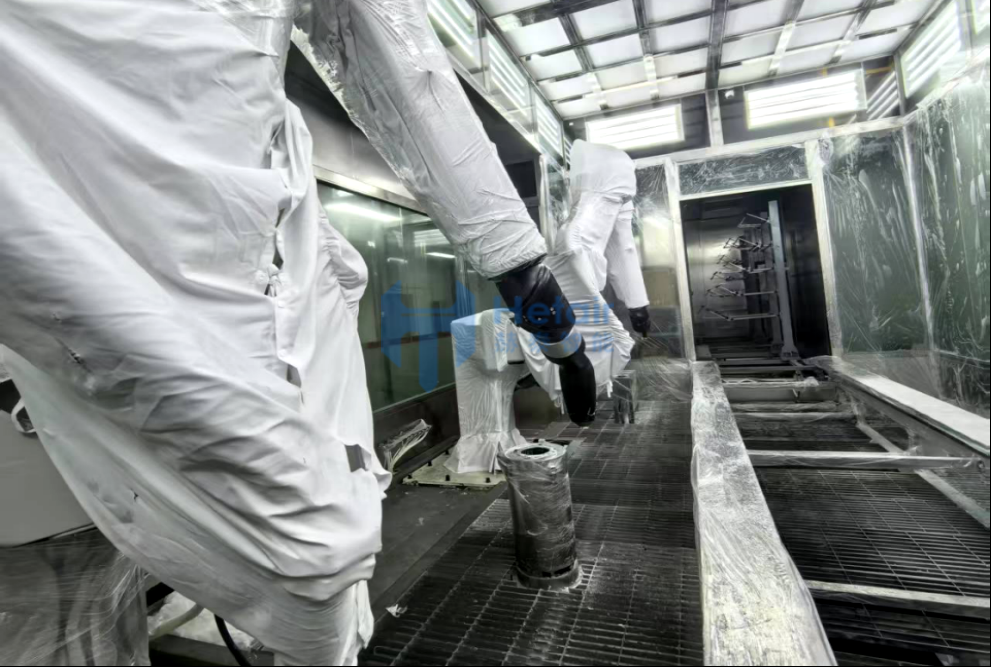

Automatic Bell Atomizer Cleaner Applications


Widely Used In

Automotive painting lines, furniture, 3C product surface coating, industrial component painting workshops, etc.








Related Painting Robots & Automation

Multi Axis Rotating Spray Arm
Multi Axis Rotating Spray Arm

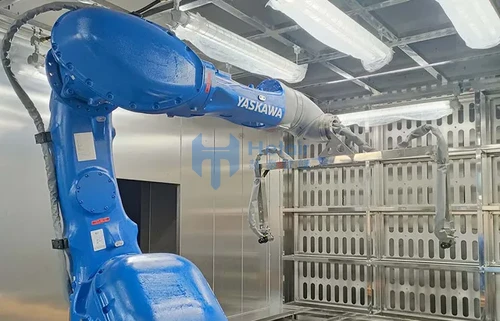

Paint Booth Robots
