Multi Axis Reciprocator

Multi Axis Reciprocator Specification

Multi Axis Reciprocator Competitive Advantages

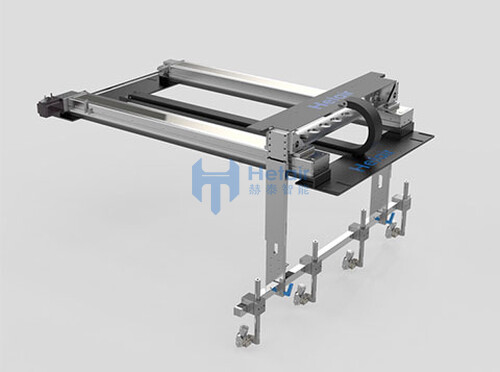

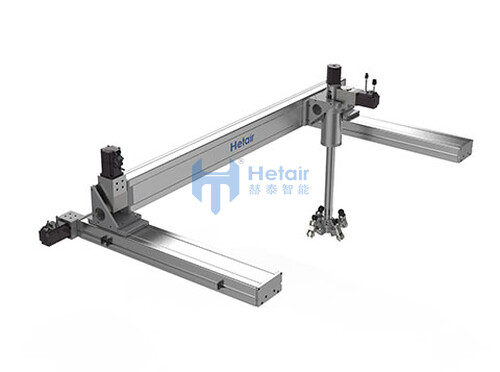

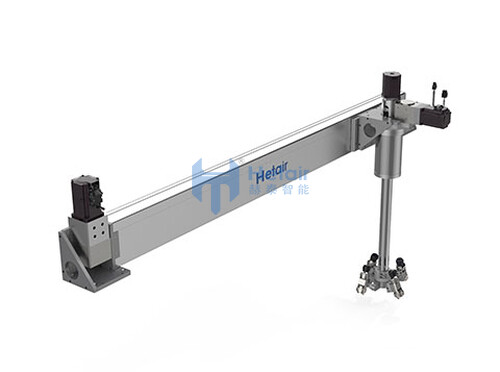

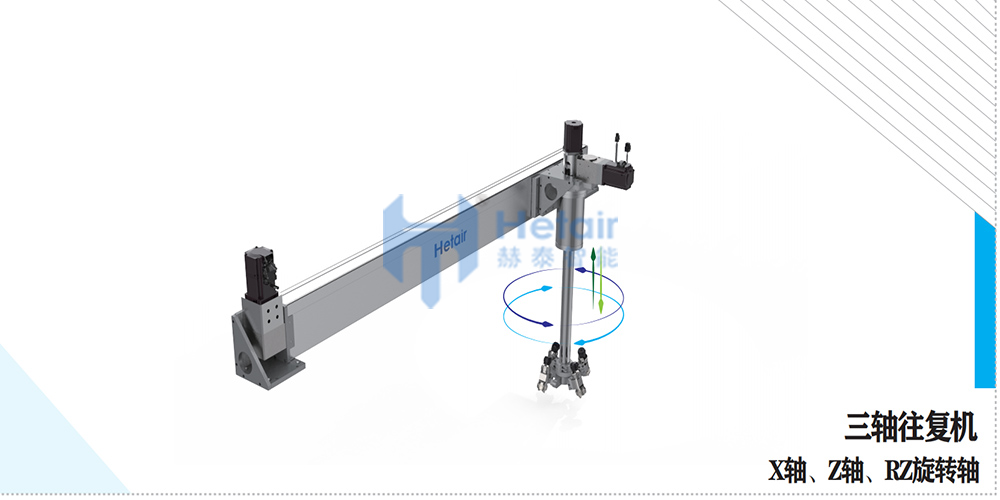

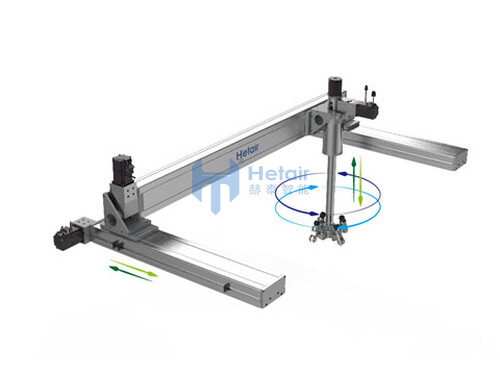

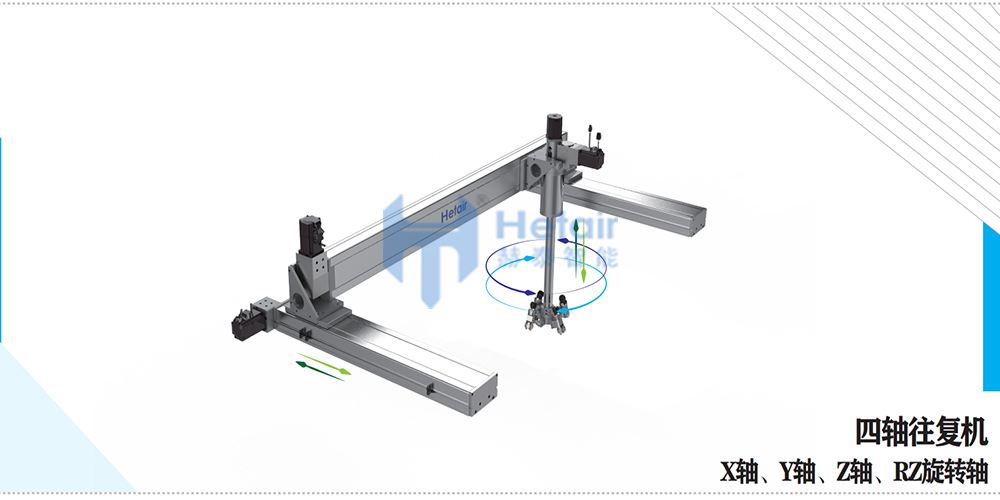

Utilizes a multi-axis dust-free modular Cartesian reciprocating work path.

Ultra-low-pressure micro-atomization precision spraying with no back contamination or ink overflow.

Standard equipped with precision flow metering system, achieving extreme accuracy of ±1cc.

By simulating the multi-axis robotic motion of manual work, it delivers a high-quality spraying experience. Combines the precision, reliability, and finesse of an artisan's hand with the speed and continuity of an automated spraying system.

Equipped with an ultra-low-pressure high-atomization automatic spray gun and the HT-SVFlo precision flow metering system, it enables real-time online coating, improving paint transfer efficiency. The surface is smooth with excellent finish, uniform film thickness, and significantly saves coating space.

1. High Repetition Accuracy in Work Path:

The multi-axis reciprocating machine is suitable for large-area blind spraying products, demonstrating absolute efficiency advantages.

By integrating vision inspection and multi-degree-of-freedom mechanisms, it can freely achieve complex spraying paths, showing superior performance for irregular-shaped workpiece spraying.

Automatically retrieves system programs via visual recognition for switching spraying tasks.

Repeat positioning accuracy up to ±0.2mm with a large effective stroke.

Explosion-proof servo motors ensure safety and reliability.

2. High-Precision Atomization Spray Gun with Superior Surface Uniformity:

Precision ultra-low-pressure micro-atomization spray gun prevents back contamination and ink overflow.

Capable of 4mm-wide profiling spraying, greatly saving coating material and time.

Supports multi-gun systems for gradient color spraying, with expandable customizable color options.

3. Optional Fluid Metering System with Extreme Accuracy of ±1cc:

Standard equipped with a precision flow metering system, achieving fluid control accuracy of ±1cc and film thickness uniformity within ±1μm.

Enables more precise coating control, stable output, and high flow reproducibility.

Response time ≤0.1s, cleaning time ≤3min—essential for digitalized spraying.

Optional HT-PDFlo precise spraying flow control function allows multi-functional applications with one device, enabling automatic online mixing and precise flow control. Provides accurate data feedback for digitalized production.

4. Network Automation with Full-Time Recording for Analysis and Management:

Programmable spray gun position and tilt angle for edge coating adjustments.

Integrated with simple and intuitive software for programming all spraying parameters; automatically reads loads and calculates optimal spraying trajectories.

Equipped with standard communication interfaces such as Profibus and Profinet, eliminating the need for additional recording devices. Continuously logs all data in the host system, enabling networked digital automated production management. Reduces production costs, increases equipment uptime, and minimizes maintenance.

Multi Axis Reciprocator Applications

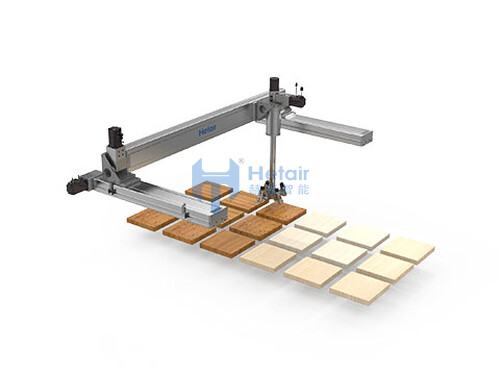

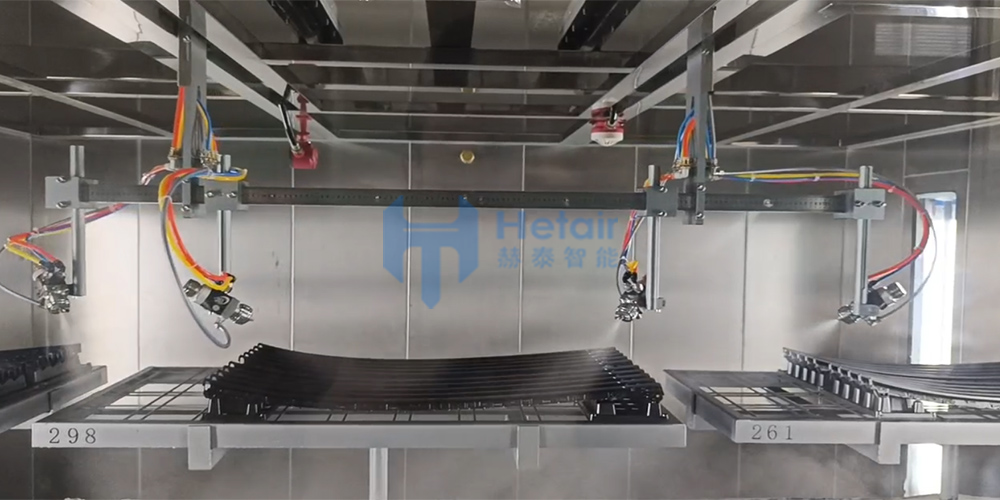

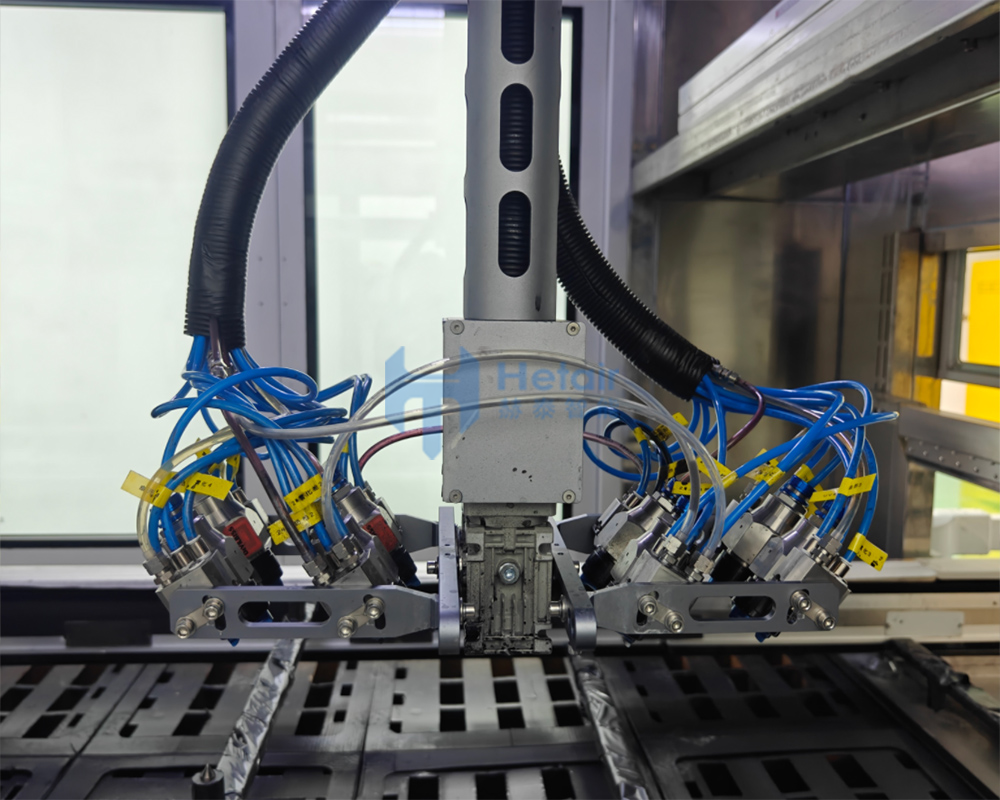

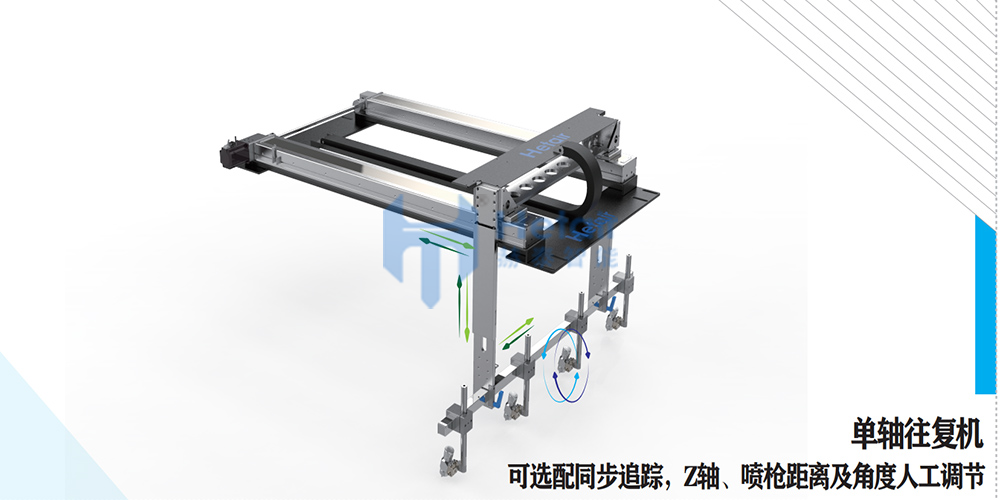

Application of Cartesian multi-axis reciprocating structure equipped with precision atomization equipment for surface precision ink/coating spraying, including paint spraying, oil spraying, glaze spraying, adhesive spraying, sandblasting, and other applications. Suitable for batch processing of small workpieces in various fields such as 3C electronics, automotive, woodware, metal, and smart product panel glass.
