HT-PDMix 2k Plural Component Volumetric Precision Mixing & Dosing Systems
ht-pdmix-2k-plural-component-volumetric-automatic-proportioning-and-mixing-system-1
volumetric-electronic-automatic-proportioning
ht-pdmix-2k-plural-component-volumetric-automatic-proportioning-and-mixing-system-3
ht-pdmix-2k-plural-component-volumetric-automatic-proportioning-and-mixing-system-1
volumetric-electronic-automatic-proportioning
ht-pdmix-2k-plural-component-volumetric-automatic-proportioning-and-mixing-system-3

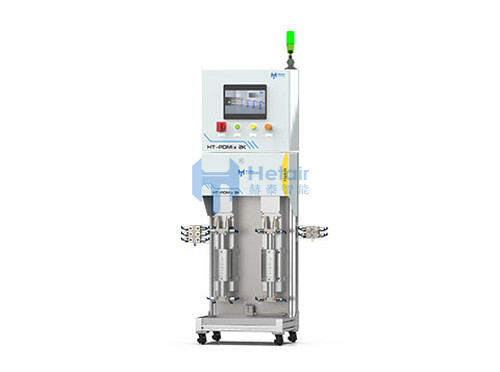

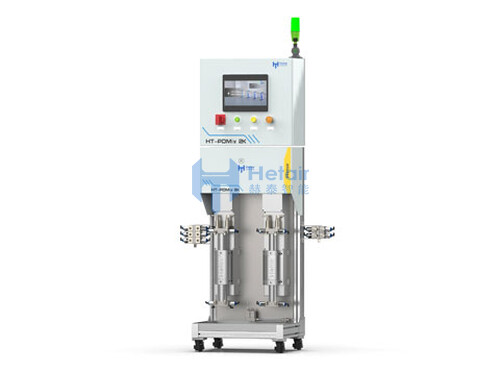

HT-PDMix 2k Plural Component Volumetric Precision Mixing & Dosing Systems

Volumetric electronic automatic proportioning system adopts volumetric metering cylinder for proportioning and mixing, and at the same time, it is equipped with micro range ultrasonic flow meter.

Quote Now

HT-PDMix 2K System Project Configurations


Proportioning range:1:1 ~ 50:1
Flow control accuracy:±1CC
Proportioning accuracy:±1%
Maximum paint pressure:300psi(21bar)
Maximum air pressure:100psi(7bar)
Air supply range:75 - 100psi(5-7bar)
Paint viscosity range:20 - 3000cps
Spray flow range:20 - 600cc/min
Temperature range:2 ~ 45℃
Power supply power:220VAC, 50HZ, maximum power 1Kw
Communication interface:Discrete I/O, Profibus, Profinet and other common communication interfaces
Applicable fluids:Single-component, two-component and three-component, various solvent-based coatings, water-based coatings, polyurethane, epoxy resin, part of the spray adhesive coatings, etc.


HT-PDMix 2K System Technical Parameters

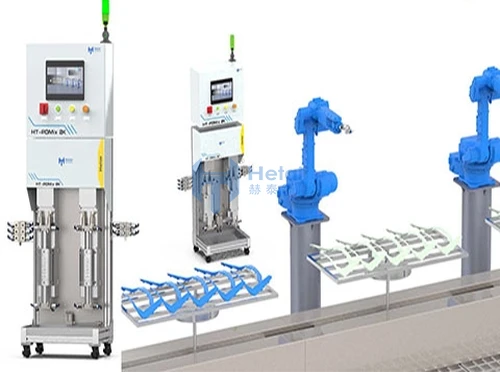

In-line spraying by robot, 1 tow 2 design controls dual gun flow.

The system carries out double metering and control, providing accurate paint proportioning and mixing and precise flow control.

Suitable for solvent-based, water-based paints, acid-curing materials, and some glues, such as single-component, two-component, and three-component paint proportioning and mixing and accurate flow control. Provides instantaneous flow rate and cumulative paint consumption, providing accurate real-time data for intelligent production and precise, convenient services for data-based management.


Core Competence of HT-PDMix 2K Plural Component Volumetric Automatic Proportioning And Mixing System


01

Configuration of metering cylinder and flow meter, double metering, closed-loop control, to ensure the accuracy of the proportion.

02

Ceramic cylinder with inner liner, polished and wear-resistant, long service life.

03

Ceramic structural parts made of fine grinding and processing, sealing ring only to play a supporting role, sealing ring use time is longer.

04

Cylinder body all liquid structure, to ensure that the cylinder wall paint will not be cured, the service life of the seal ring more durable.

05

Cylinder all-liquid structure, reduce frequent maintenance.

06

Low shear, suitable for solvent paint, water-based paint and UV paint.

07

Saving paint, equipped with three-stage cleaning and color change function, faster and more thorough cleaning time, saving paint and cleaning agent.

08

The whole set of equipment is independent research and development, and accessories all stocked with safety, cost-effective first choice.



Related Metering and Mixing System

HT-Flo Closed-loop Flow Control System
HT-Flo Closed-loop Flow Control System
HT-LPMix 3K Plural Component Mixing System
HT-LPMix 3K Plural Component Mixing System
Paint Color Change Valve Module/Fluid Manifolds
Paint Color Change Valve Module/Fluid Manifolds


Products
Spray Painting Line
Surface Treatment Systems
Fluid Handling Systems
Metering and Mixing System
HT-Flo Closed-loop Flow Control System
HT-PDFlo Positive Displacement Flow Control System for Measuring Cylinder Volume
HT-PDMix 2k Plural Component Volumetric Precision Mixing & Dosing Systems
HT-LPMix 2K Plural Component Electronic Precision Mixing & Dosing Systems
HT-LPMix 3K Plural Component Mixing System
HT-PDMix 3K Plural Component Volumetric Automatic Proportioning And Mixing System
Paint Color Change Valve Module/Fluid Manifolds
Color Change Valve/Needle Valve
Painting Robots & Automation

HT-PDMix 2K FAQs

What is the spray flow range?

The listed project configuration provides a spray flow range of 20–600 cc/min and supports coating viscosities from 20–3000 cps.


What is the HT-PDMix 2K system used for?

HT-PDMix 2K is used for automatic metering, proportioning, mixing and flow control of industrial coating materials, especially where repeatable multi-component ratios are required in automated spraying.


Why choose a HT-PDMix 2K Auto-Metering Mixing System ?

It is more precise than traditional manual premixing, allowing for immediate use and mixing, reducing the waste of excess paint after manual premixing. It can be used for both manual and automatic two-component automatic proportioning spraying. The mixing system features intelligent functions, ensuring rapid color change and easy flushing, which can minimize the consumption of cleaning agents and material loss, and significantly reduce the time required for flushing and filling with new media.


What mixing ratio can HT-PDMix 2K handle?

The standard project configuration supports proportioning ratios from 1:1 to 50:1, with proportioning accuracy of ±1%.


What materials can this paint mixing system handle?

The system supports a range of solvent-based and water-based coatings, polyurethane, epoxy resin and selected spray adhesive materials, subject to material and process confirmation.


Can HT-PDMix 2K be integrated with automated spraying equipment?

Yes. The system is designed for in-line robot spraying and supports common communication interfaces including discrete I/O, Profibus and Profinet. If a project requires a different 2K/3K proportioning, flow-control or mixing configuration, buyers can also review Hetair's metering and mixing system range.
