Plastic Workpiece (Interior Parts) Surface CO2 Cleaning

B-side & side CO2 cleaning, clean up after milling particles, dust, etc.

Main process: upper part → cleaning → lower part (front process: milling, back process: pad printing).

Quote Now

Main process

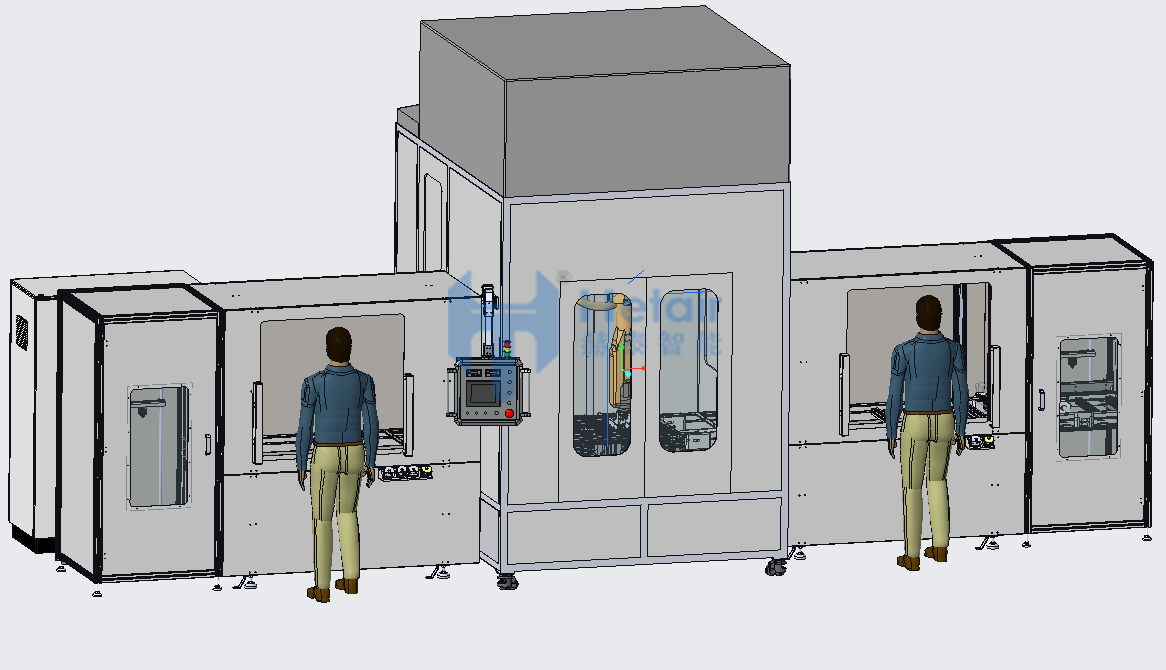

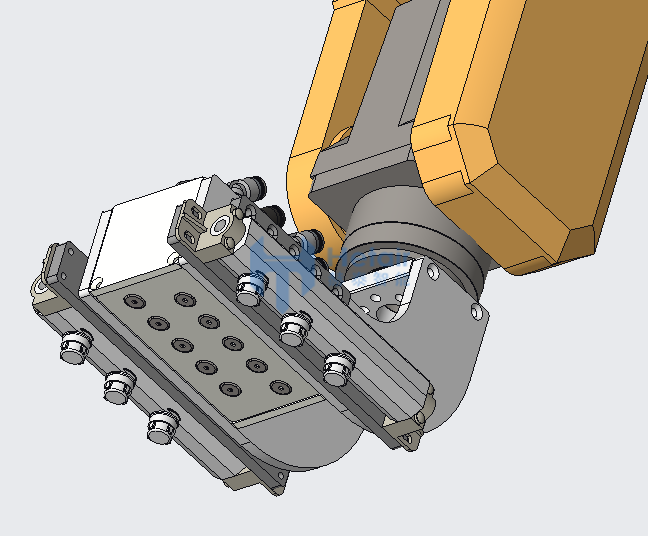

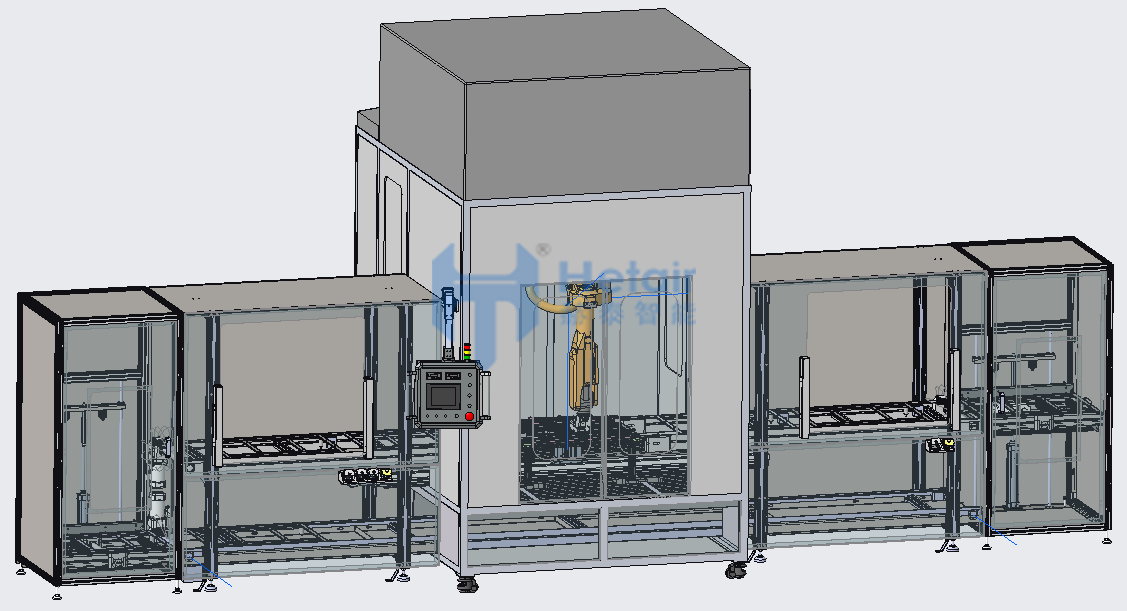

Mainly consists of liquid carbon dioxide pressurisation system, liquid carbon dioxide thermostatic system, process control system (including liquid carbon dioxide, compressed air control, fan control and conveying control), circulating conveying line, dust removal room, fresh air supply cabinet, robot and snowflake nozzle.

1、 The upper and lower parts are placed in the cleaning station or on the conveyor chain by manually picking up and placing the pallet, the automatic cleaning action is completed by the equipment identifying the parts in the current station and automatically transferring the robot or reciprocator trajectory.

2、 With the CO2 cleaning technology itself parameters of the monitoring means to facilitate on-site detection, such as snowflake fan width, snowflake flow, air pressure, temperature, particle size, etc..

3、 Different workpiece pieces of programme switching, different positions of the nozzle switch are equipped with automatic identification, when different workpieces of the workpiece arrives at the operating position, through the automatic identification and call the corresponding cleaning programme.

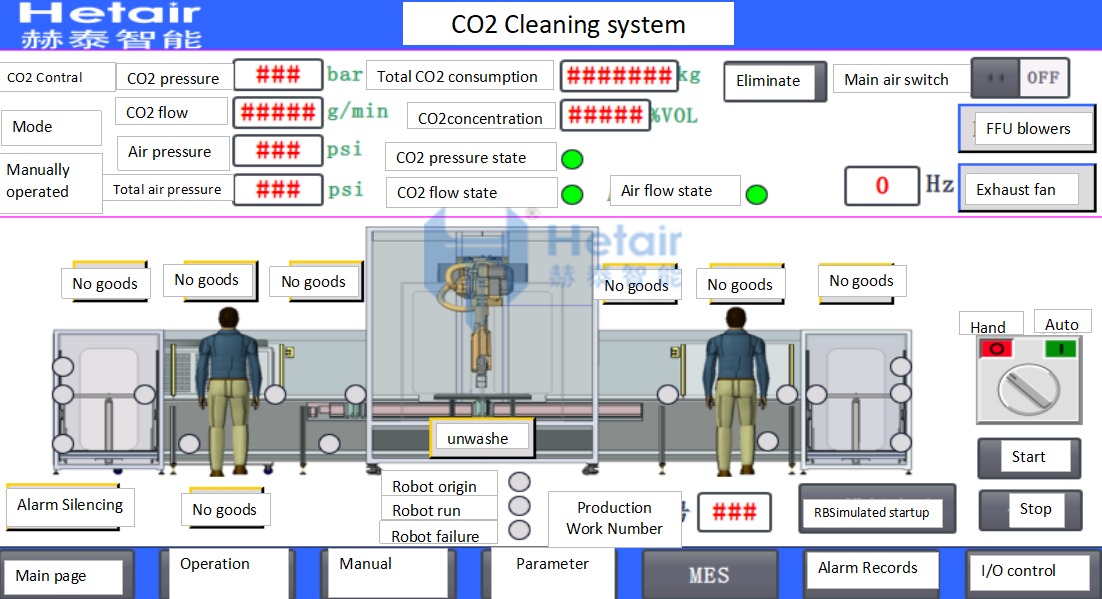

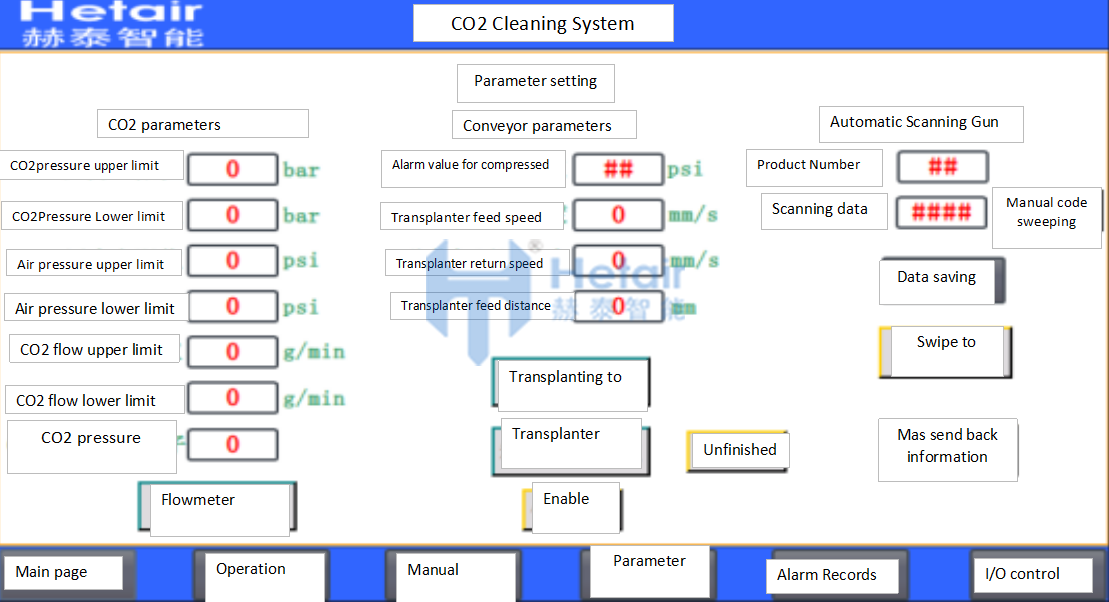

4、 Conveyor chain and robot movement accuracy of ± 2mm, pallet workpiece in the cleaning process, the equipment to take into account the state of the pallet moving and fixed, to minimise the waste of the pallet shift load beat.

5、 CO2 cleaning after the surface of the workpiece without dust, water stains, other foreign matter, in terms of the environment, non-toxic, harmless, no solvents, no chemical additives are environmentally friendly.

CO2 cleaning process through the air flow rate to take away pollutants, which not only play a role in cleaning, and does not hurt the surface of the workpiece, especially for sensitive and delicate material workpiece. Suitable for all materials, complex shaped parts and highly automated workpiece surface cleaning.

Cancellation of washing, drying, conveyor lines and control and other energy consumption links, reduce investment and operating costs, respond to energy saving and environmental protection.
