HT-Flo Closed-loop Flow Control System
closed-loop-flow-control-system
closed-loop-flow-control
closed-loop-flow-control-system-company
closed-loop-flow-control-for-sale
closed-loop-flow-control-system
closed-loop-flow-control
closed-loop-flow-control-system-company
closed-loop-flow-control-for-sale

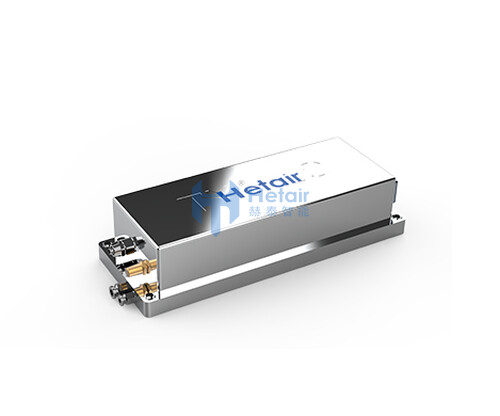

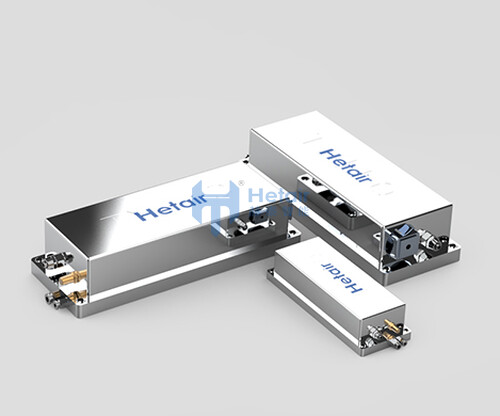

HT-Flo Closed-loop Flow Control System

The control system performs real-time flow detection via a flow meter, compares it with the target flow rate, and forms a closed-loop feedback mechanism.

Quote Now

HT-Flo Closed-loop Flow Control System

Measurement Accuracy±0.01 g/m
Control Accuracy±3 cc
Maximum Coating Pressure200 psi (14 bar)
Maximum Air Pressure100 psi (7 bar)
Coating Viscosity Range20 ~ 5000 cps
Flow Rate Range20 - 3800 ml/min


Core Competencies

The system dynamically adjusts the flow control module to maintain coating flow within the target range, while providing real-time flow data for precise, data-driven coating management.

Comprehensive Data Logging for Analysis and Management

The system features a continuous data logging function that does not require additional recording devices. It can record various data types in the main unit at any time, providing real-time, precise spray flow data, including instantaneous flow, cumulative flow, and discharge volume, facilitating data-driven spraying and management.


Precise Spray Flow Control

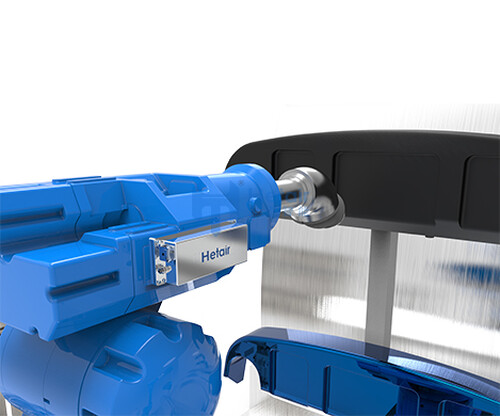

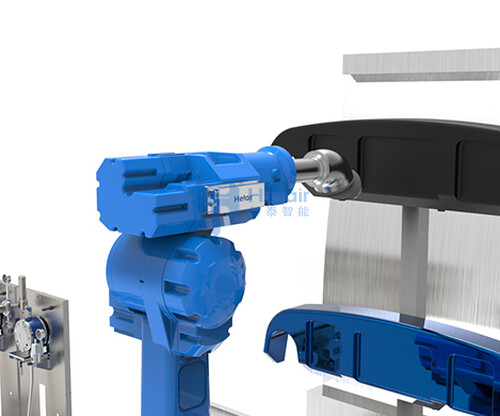

The HT-Flo system utilizes precise spray flow control capabilities, allowing for multifunctional applications with a single device. It supports automatic online mixing and accurate spray flow control, delivering precise data feedback for digital production. This versatility saves costs while ensuring product quality. Real-time flow monitoring provides effective data for intelligent production, reducing tedious setup work and improving production efficiency. The compact module can be installed on robotic arms, bringing it closer to the spray gun for quicker response times, easier adjustments, and less workload, thereby reducing installation space and enhancing the overall stability of the application system.

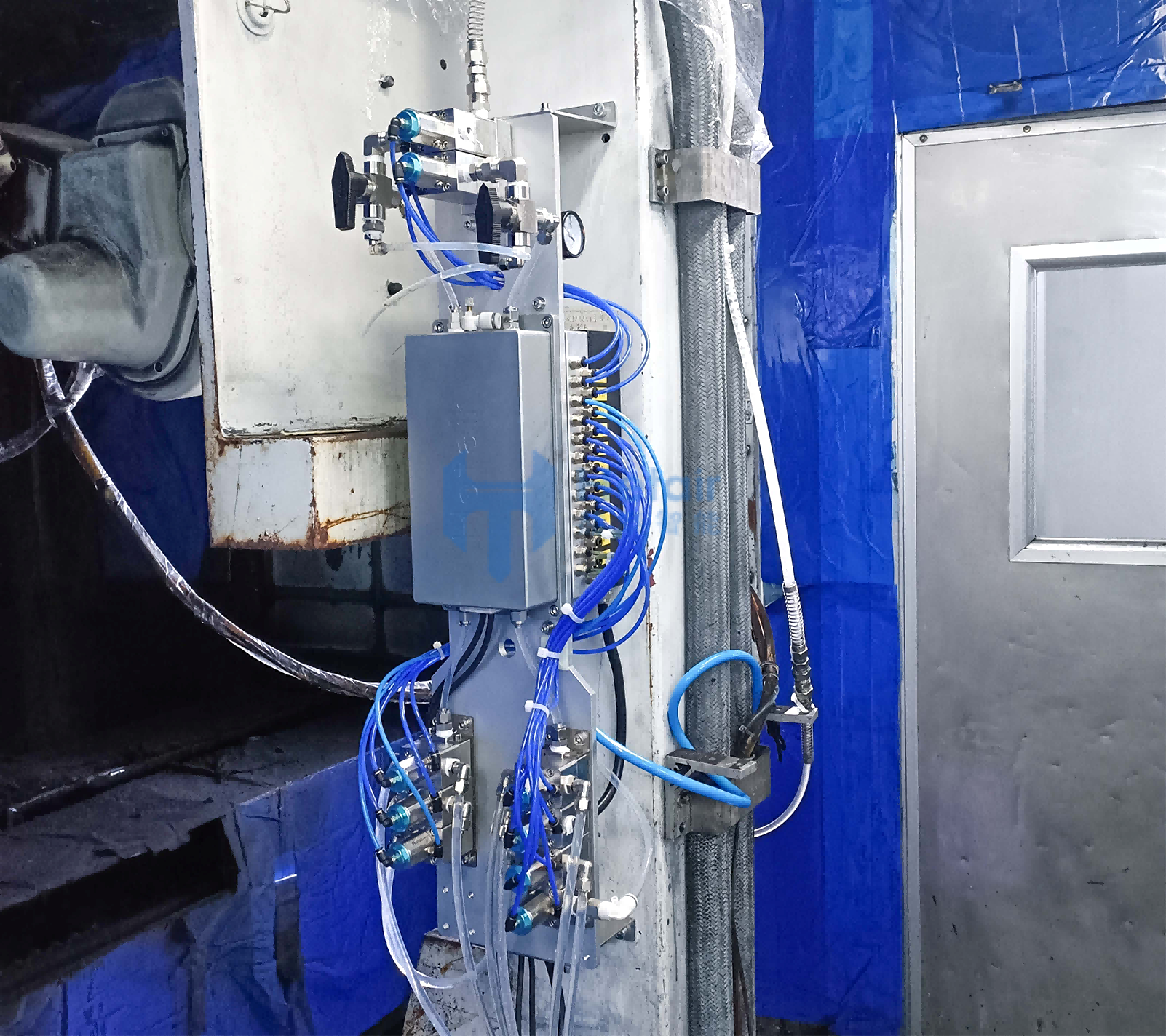

Process Applications

The HT-Flo Closed-loop Flow Control System is suitable for precision, high-quality spraying operations and the control of various solvent-based and water-based paints, ensuring production quality while saving on paint usage. It continuously monitors the paint discharge volume and has the capability to adjust to maintain a dynamically constant target flow rate. Enhanced flow detection provides data feedback for system design, forming a closed-loop control system that achieves precise, stable, and rapid response in spray flow supply. Real-time data on accumulated paint consumption serves as the most effective foundational data for intelligent, automated production. Additionally, customizable functional modules can be selected based on specific industry applications or high-quality spraying needs.





Related Metering and Mixing System

HT-LPMix 3K Plural Component Mixing System
HT-LPMix 3K Plural Component Mixing System

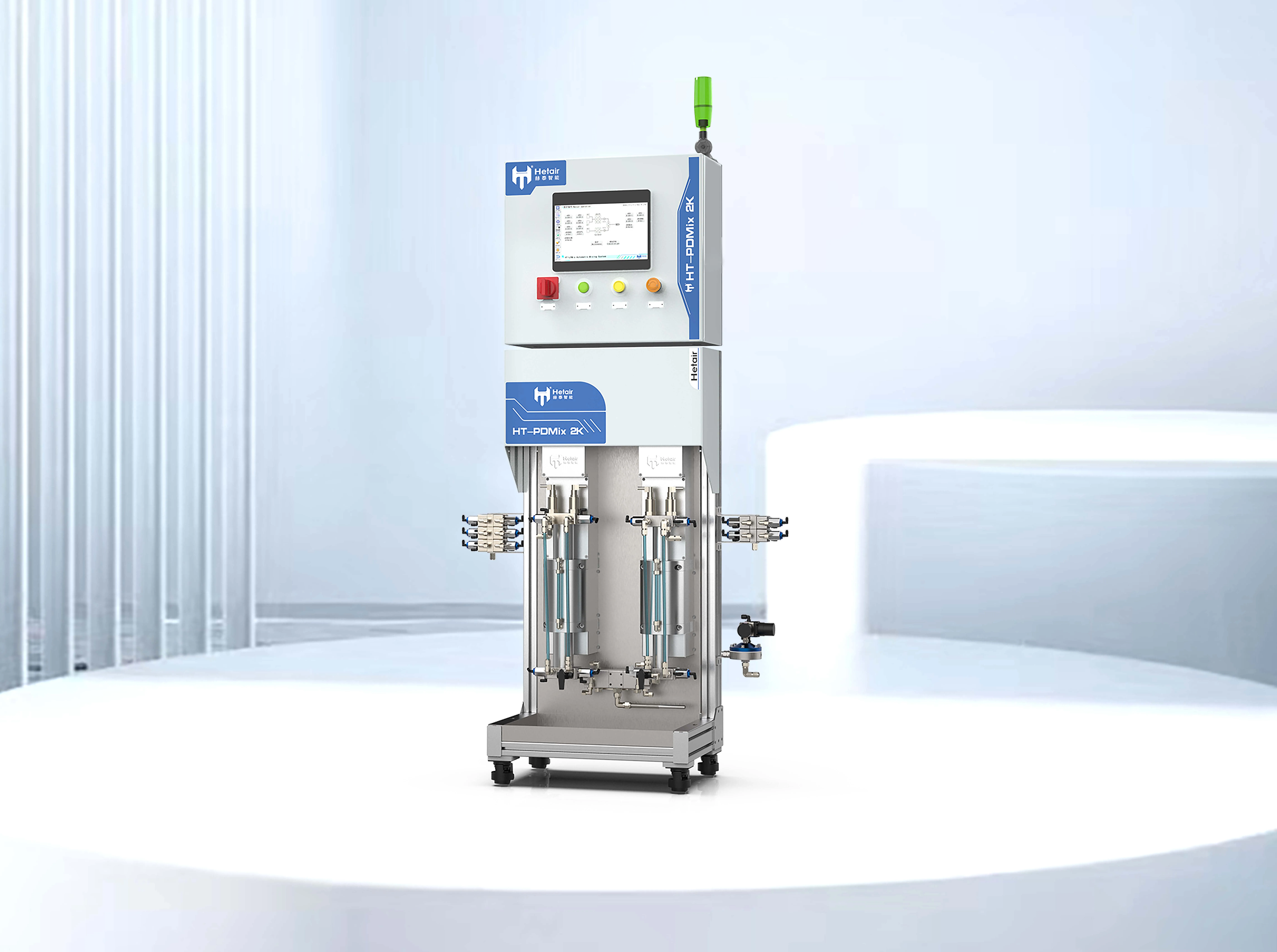

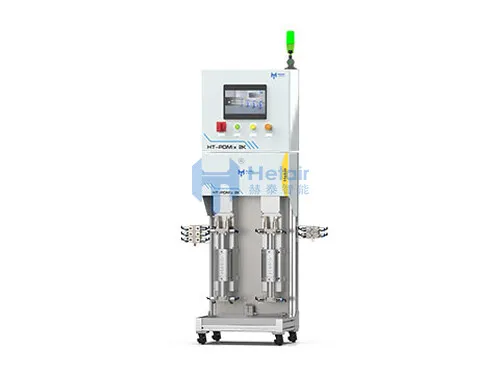

HT-PDMix 2k Plural Component Volumetric Precision Mixing & Dosing Systems
HT-PDMix 2k Plural Component Volumetric Precision Mixing & Dosing Systems

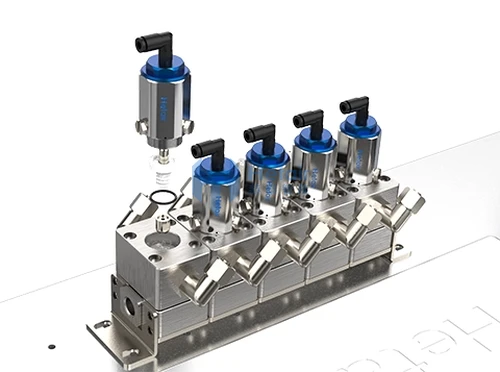

Paint Color Change Valve Module/Fluid Manifolds
