Spraying process: 3CB

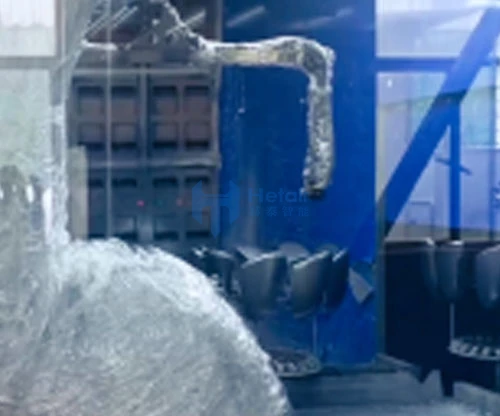

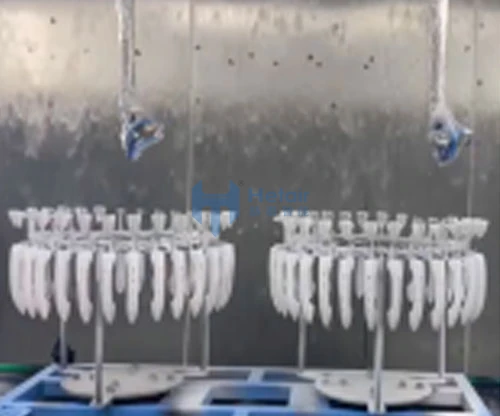

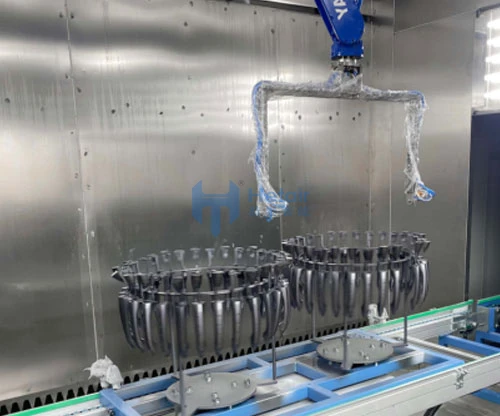

The main spraying products are: automotive mirrors, automotive gas cap, automotive door handles, automotive trim and other accessories; spraying line using a sled conveyor, RFID identification system, pre-treatment using carbon dioxide snow cleaning, spraying configuration YASKAWA (YASKAWA) robot, 1 +1 +1 +1 configuration mode, the air spray gun spraying, line side for the system; spraying workpiece disk diameter size of 700mm, the highest 600mm spraying products, the design production cycle of 110S. The maximum size of sprayed products is 600mm, the designed production beat is 110S.
