CO₂ Snow Nozzle

Name: CO₂ Snow Nozzle
Brand: Dongguan Hetair Intelligent Equipment Co., Ltd.
Rating: 4.2 (3 reviews)

The CO2 snowflake nozzle is equipped with an electrostatic ion air knife to complete snowflake cleaning and static elimination simultaneously.

Quote Now

Nozzle Terminal Specifications

CO₂ Blasting System

Parameter	Value/Specification
CO₂ Pressure	Adjustable (operating range)
CO₂ Jet Diameter	[To be specified] (cleaning coverage)
Operating Air Pressure	6-8 bar
Nozzle-to-Surface Distance	[To be specified] mm
CO₂ Jet/Surface Angle	[To be specified]°

Booster System

Parameter	Value/Specification
CO₂ Inlet Pressure	18-22 bar
CO₂ Outlet Pressure	Adjustable (55-65 bar)
Air Inlet Pressure	6-8 bar
Control Voltage	220 VAC

Temperature Control System

Parameter	Value/Specification
Temperature Range	5°C – 35°C
Power Supply	3N-380V-50Hz
Total Power	11.4 kW
Water Tank Capacity	140 L
Temp. Control Accuracy	±2°C

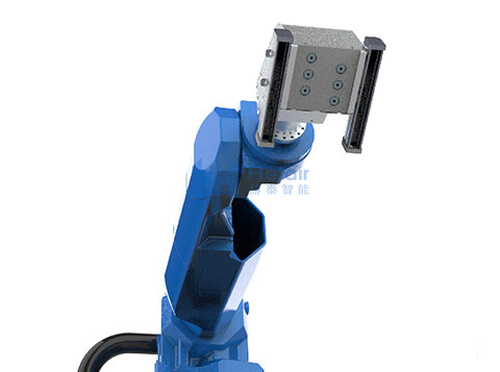

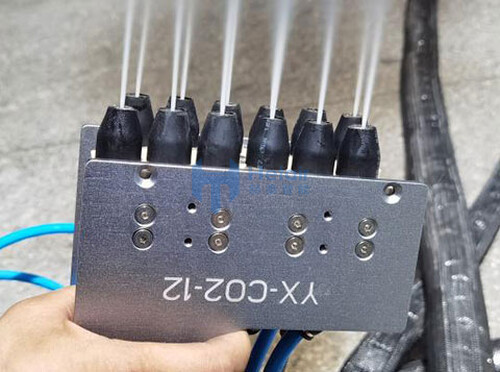

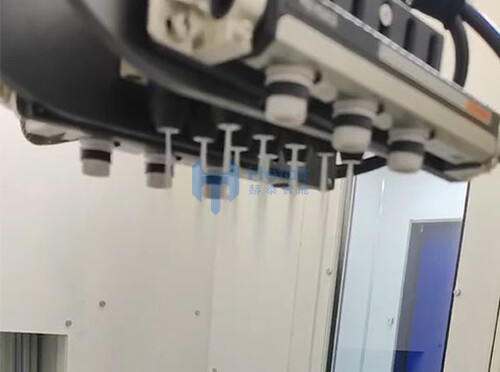

Nozzle Terminal Features

Equipped with a Keyence electrostatic ion gun with a static detection feedback function to avoid defects in mass production caused by working without static electricity.

Reduces the need for a robot dust removal room at an additional static elimination station, reducing investment costs and usage costs. At the same time, it reduces the floor area and secondary pollution.

After CO2 snowflake dust removal, there is no water or solvent on the surface, and the workpiece can be directly transferred to the spraying station.

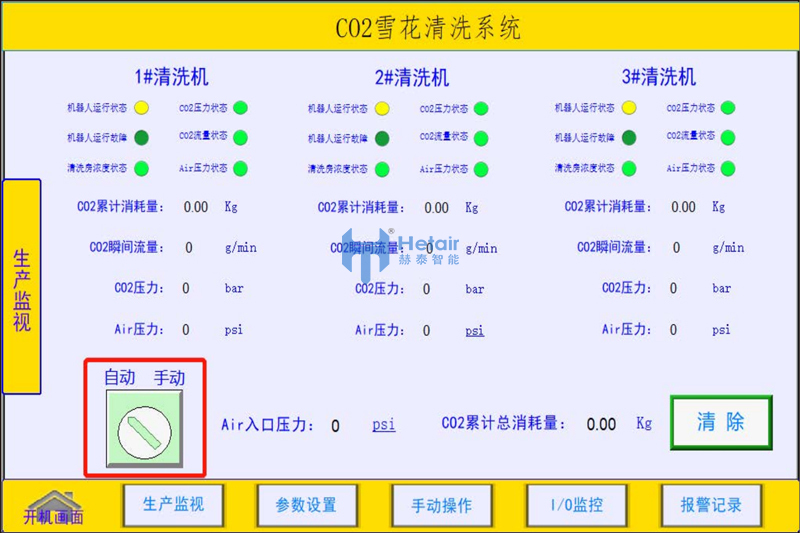

Main Machine Control of CO₂ Snow Nozzle

The system is equipped with a CO2 detection flowmeter to achieve upper and lower limit alarms for CO2 flow rate settings. The system is equipped with a CO2 pressure detection transmitter to achieve upper and lower limit alarms for CO2 pressure settings.

The system is equipped with a CO2 concentration detection transmitter to achieve safety alarms when the CO2 concentration exceeds the standard.

Equipped with compressed air flow and pressure detection to achieve upper and lower limit control alarms for compressed air settings.

The system provides real-time feedback on the instantaneous flow rate of CO2 and accurately counts the cumulative consumption of CO2.

The system's water tank is equipped with a liquid level detection device to avoid safety accidents caused by water shortages.

Through the above functional configurations, the system effectively avoids poor cleaning effects and safety accidents that may occur during the production process.
