Flame Treatment Machine/Surface Activating Via Flaming

flame treatment machine surface activating via flaming 2

flame treatment machine surface activating via flaming 1





Flame Treatment Machine/Surface Activating Via Flaming

Name: Flame Treatment Machine/Surface Activating Via Flaming
Brand: Dongguan Hetair Intelligent Equipment Co., Ltd.
Rating: 4.2 (3 reviews)

In the field of automotive manufacturing, the processing technology of automotive plastic parts is of utmost importance. As an advanced technology, the flame combustion system is gradually demonstrating significant advantages in the production of automotive plastic parts.

Quote Now

Flame Treatment Machine: Working Principle

When applied to automotive plastic parts, the flame combustion system uses a specially designed combustion device to generate high-temperature flames. This flame precisely acts on the surface of automotive plastic parts, causing a change in the molecular structure of the plastic part surface through an instant high temperature. This change does not involve melting the plastic parts but, at a microscopic level, creates a state on the plastic surface that is more conducive to subsequent processing or performance improvement. For example, it can improve the surface roughness and activity of plastic parts, enhancing their bonding ability with coatings, adhesives, and other materials.

The application of the flame combustion system in the production of automotive plastic parts has brought a more high-quality, efficient, and environmentally friendly solution to the automotive manufacturing industry, driving the continuous advancement of automotive plastic part manufacturing processes.

Flame Treatment Machine Specifications

System application		Flame deburring
Air Burner Model		D-6-200
Burner Length		200mm
Flame Length (mm)		150-200mm
Ignition Method		Ignition Rod
Flame Detection Method		Ignition Rod Detection
Single Burner Power (kcal)		4000Kcal
Number of Burners		1
Fuel Parameters	Fuel Type	Natural Gas or Liquefied Propane
	Lower Heating Value ( kcal/m³ (standard) )	8500
	Fuel Temperature (℃)	Ambient Temperature
Rated Fuel Consumption (Nm³/h)		4
Fuel Pressure (kPa)		20-30kPa, maximum not exceeding 50kPa
Combustion Supporting Gas		Air, oil-free and water-free, -20℃ dew point
Combustion Supporting Gas Pressure (bar)		2-6
Combustion Supporting Gas Temperature (℃)		Ambient Temperature
Combustion Supporting Gas Flow Rate (Nm³/h)		40

Flame Treatment Machine: Key Advantages

Improved Surface Quality

After being treated by the flame, the surface of automotive plastic parts becomes more uniform and smooth, effectively reducing surface defects such as tiny bubbles and depressions. This, in turn, enhances the appearance quality of the products, meeting the strict requirements of the automotive industry for high-quality appearance.

Enhanced Adhesion

It greatly improves the adhesion between plastic parts and coatings, adhesives. This means that in automotive production, whether it is the painting process or the bonding and assembly of plastic parts with other components, a more firm and long-lasting bonding effect can be achieved. It reduces problems such as peeling and delamination caused by insufficient adhesion, extending the service life of automotive components.

Intelligent Monitoring and Feedback

The system is equipped with intelligent monitoring devices that can continuously monitor parameters such as the temperature, pressure, and flow rate of the flame, as well as the processing status of plastic parts. Once abnormal parameters or malfunctions are detected, the system will immediately issue an alarm and automatically take corresponding measures, such as adjusting the flame parameters or pausing production, to ensure the safety and stability of the production process. In addition, through the analysis and processing of a large amount of production data, the system can continuously optimize its own operating parameters, achieving intelligent production control and further improving the quality and efficiency of flame treatment.

Environmental Protection and High Efficiency

Compared with some traditional chemical treatment methods, the flame combustion system is more environmentally friendly. It does not use a large amount of chemical reagents, reducing the generation of chemical waste and environmental pollution. At the same time, the flame treatment is fast, enabling automated continuous production, which greatly improves production efficiency and reduces production costs.

Flame Treatment Machine: Versatile Applications

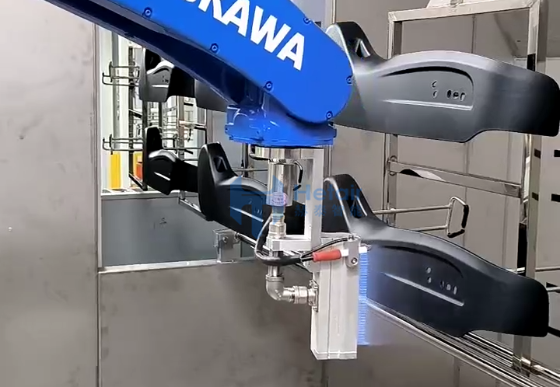

Automotive Interior Parts

Plastic components such as instrument panels, center consoles, and door interior panels. After being treated by the flame combustion system, they can better bond with the decorative materials and coatings on the interior surface, enhancing the overall texture and aesthetics of the interior.

Automotive Interior Parts

Automotive Exterior Parts

Plastic exterior parts such as bumpers and rearview mirror housings. Flame treatment can enhance the adhesion of their surfaces to paint, making the paint finish more durable, less likely to fade or peel, and improving the durability and aesthetics of automotive exteriors.

Automotive Functional Plastic Parts

Plastic pipelines around the engine, electrical enclosures, and other functional plastic parts. Flame treatment helps to improve the surface performance of these components, meeting their usage requirements in complex working environments.
