HT-PDMix 3K Plural Component Volumetric Automatic Proportioning And Mixing System
ht-pdmix-3k-plural-component-volumetric-automatic-proportioning-and-mixing-system
core-competence-of-ht-pdmix-3k-plural-component-volumetric-automatic-proportioning-and-mixing
ht-pdmix-3k-plural-component-volumetric-automatic-proportioning-and-mixing-system
core-competence-of-ht-pdmix-3k-plural-component-volumetric-automatic-proportioning-and-mixing

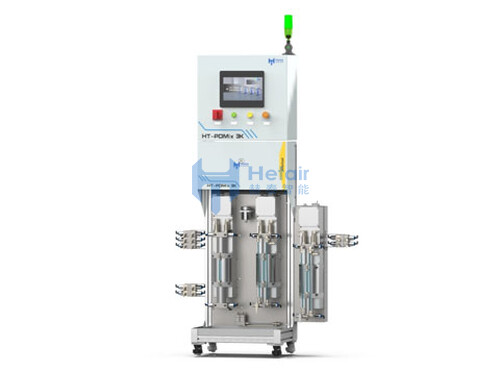

HT-PDMix 3K Plural Component Volumetric Automatic Proportioning And Mixing System

Volumetric electronic automatic proportioning system adopts volumetric metering cylinder for proportioning and mixing, and at the same time, it is equipped with micro range ultrasonic flow meter, the system carries out double metering and control, providing accurate paint proportioning and mixing and precise flow control.

Quote Now

HT-PDMix 3K Automatic Proportioning & Mixing System Specifications

Mixing Ratio Range1:1 ~ 50:1
Flow Control Accuracy±1 cc
Mixing Accuracy1%
Maximum Coating Pressure300 psi (21 bar)
Maximum Air Pressure100 psi (7 bar)
Air Supply Range75-100 psi (5-7 bar)
Coating Viscosity Range20-3000 cps
Spraying Flow Rate Range20-600 cc/min
Temperature Range2 ~ 45 °C
Power Supply220 VAC, 50 Hz, maximum power 1 kW
Communication InterfacesDiscrete I/O, Profibus, Profinet, and other common communication interfaces
Applicable FluidsSingle-component, dual-component, and three-component, various solvent-based coatings, water-based coatings, polyurethane, epoxy resin, and some spray adhesive coatings, etc.


HT-PDMix 3K Compatible Project Configurations


In-line spraying by robot, 1 tow 2 design controls dual gun flow.

Suitable for solvent-based, water-based paints, acid-curing materials, and some glues, such as single-component, two-component, three-component paint proportioning and mixing and accurate flow control. Provides instantaneous flow rate and cumulative paint consumption, providing accurate real-time data for intelligent production and precise, convenient services for data-based management.

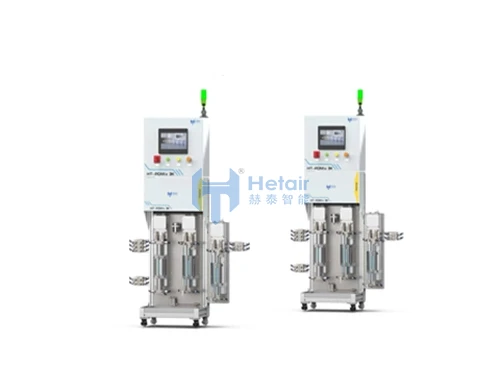

HT-PDMix 3K Core Advantages


01

Configuration of metering cylinder and flow meter, double metering, closed-loop control, to ensure the accuracy of the proportion.

02

Ceramic cylinder with inner liner, polished and wear-resistant, long service life.

03

Ceramic structural parts made of fine grinding and processing, sealing ring only to play a supporting role, sealing ring use time is longer.

04

Cylinder body all liquid structure, to ensure that the cylinder wall paint will not be cured, the service life of the seal ring more durable.

05

Cylinder all-liquid structure, reduce frequent maintenance.

06

Low shear, suitable for solvent paint, water-based paint and UV paint.

07

Saving paint, equipped with three-stage cleaning and color change function, faster and more thorough cleaning time, saving paint and cleaning agent.

08

The whole set of equipment independent research and development, accessories all stocked with safety, cost-effective first choice.



Related Metering and Mixing System

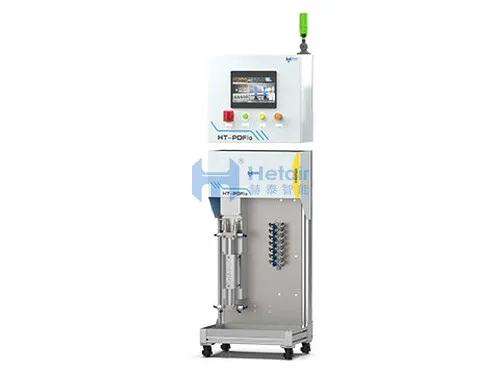

HT-PDFlo Positive Displacement Flow Control System for Measuring Cylinder Volume
