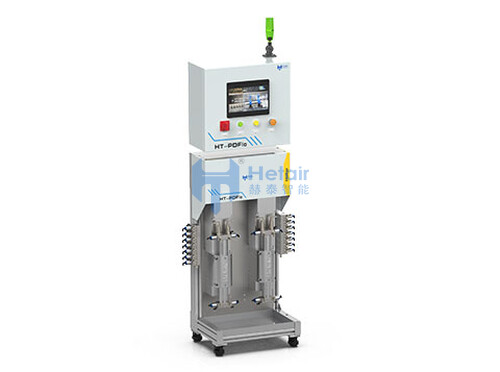

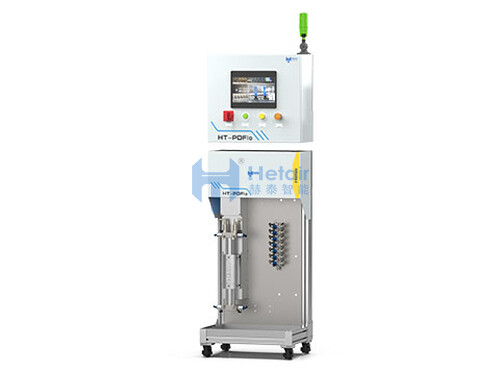

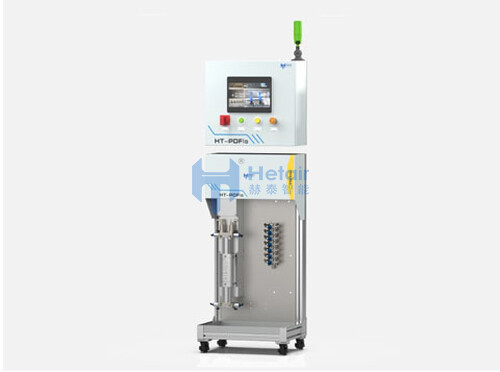

HT-PDFlo Positive Displacement Flow Control System for Measuring Cylinder Volume

Adopting the precision metering method of volumetric metering cylinder, the metering accuracy can reach ±1CC; accurately controlling the spraying spitting volume of the spray gun to ensure the stability of spraying and the uniformity of spraying film, and at the same time.

Quote Now

HT-PDFlo System Technical Parameters



Flow Control Precision±1CC
Maximum coating pressure300psi(21bar)
Maximum air pressure100psi(7bar)
Gas supply range75 - 100psi(5-7bar)
Coating Viscosity Range20 - 3000cps
Spraying flow range20 - 600cc/min
Power supply (of an appliance etc)220VAC，50HZ，Max power 1Kw
Communication interfaceDiscrete I/O, Profibus, Profinet and other common communication interfaces
Applicable fluidsVarious solvent-based coatings, water-based coatings, polyurethane, epoxy resins, some spray adhesive coatings, etc.



HT-PDFlo System Project Configurations

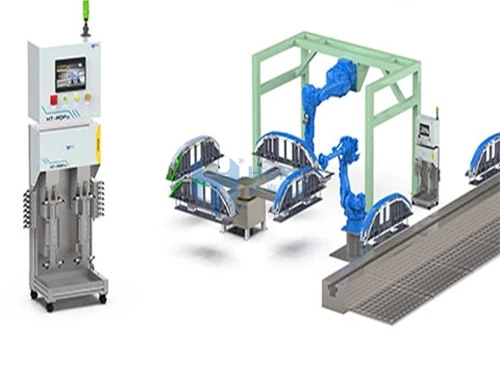

1. Robotic in-line coating with 1 tow 2 design to control dual gun flow.

2. Automobile door handles, mirrors, gas caps, and other interior and exterior parts.

Reducing the frequent debugging work of manual labor, the system provides the real-time spraying instantaneous flow rate of the coating material, the beat, the coating material consumption, the cumulative coating material consumption, and other technical parameters, and the system is equipped with a network communication interface, the data can be connected to the company's ERP system or MES system through the network interface, which can realize remote real-time monitoring and control. The system is equipped with a network communication interface, the data can be connected to the company's ERP system or MES system through the network interface to realize remote real-time monitoring.


HT-PDFlo System Configuration Options


1. The robot is housed in a gantry and is paired with a rotary table for offline coating.

2. Automobile lamps, lampshade interior and exterior parts.



Core Competence of HT-PDFlo Positive Displacement Flow Control System for Measuring Cylinder Volume


01

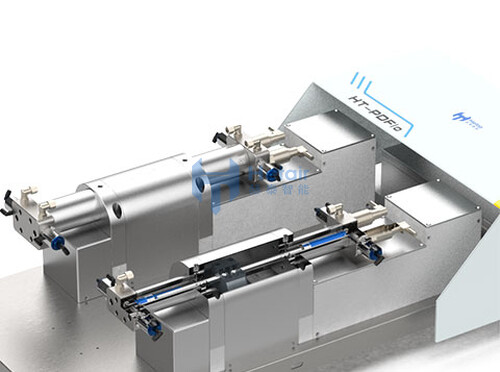

Inner ceramic cylinder, polished and wear-resistant, long service life.

02

The ceramic structural parts are precision ground and processed, and the sealing ring only plays an auxiliary role, so that the sealing ring can be used for a longer period of time.

03

The full liquid structure of the cylinder ensures that the paint on the cylinder wall will not cure and the sealing ring has a more durable service life.

04

Cylinder all-liquid structure reduces frequent maintenance.

05

Low shear, suitable for solvent paints, waterborne paints and UV paints.

06

Save paint, configure three-stage cleaning and color change function, faster and more thorough cleaning time, save paint and cleaning agent.

07

The whole set of equipment independent research and development, accessories are all stocked with safety stock, cost-effective first choice.
