Standard Dry Spray Room

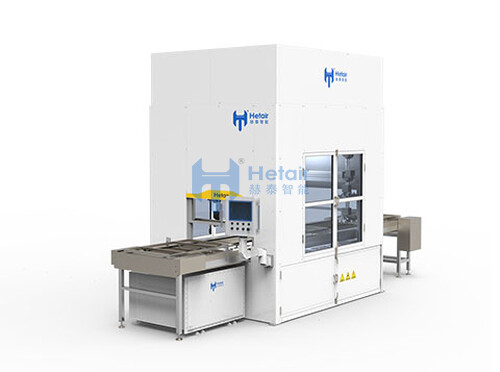

standard-dry-spray-room-1

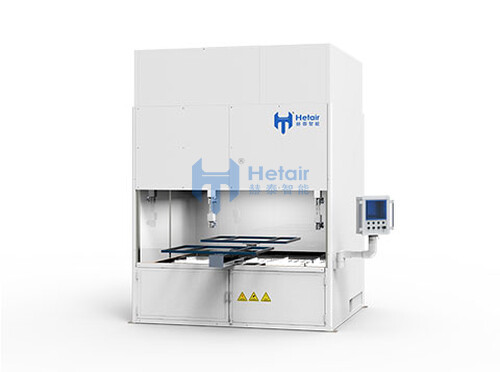

standard-dry-spray-room-2
standard-dry-spray-room-1
standard-dry-spray-room-2

Standard Dry Spray Room

The Standard Spraying Workstation is a series of multi-purpose, multi-configuration spray painting machines developed by Hetair Company to meet the rapidly evolving market demands. It offers diverse spraying configurations, flexible applications, and is suitable for spray painting production across various products. It is suitable for spray painting components in industries such as automotive parts, motorcycle parts, toys, 3C electronics, aerospace, and more.

Quote Now

Standard Dry Spray Room Specifications


Technical Parameters
Air Supply MethodTop air supply
Air Velocity in Painting Work Area≥0.4 m/s
Indoor Cleanliness300,000 class
Indoor Exhaust MethodBottom suction
Air Filtration MethodRecirculating air filtration
Noise Level During Workstation Operation≤60 dB
Pneumatic Lift DoorLift doors at the entrance and exit of the spraying area, made of stainless steel, operated by cylinders
Illumination in Entrance, Exit, and Spraying Work Area≥800 Lux



Features of Standard Dry Spray Room


· The workstation accommodates products with dimensions smaller than L1300mm × W800mm × H300mm and weighing less than 35kg, including plastic parts, metal parts, wooden products, carbon fiber composites, etc.


· With a compact footprint, low energy consumption, simple and convenient operation, and short installation and debugging time, the equipment can be relocated as needed without damage, adapting to production site requirements.


· Compatible with solvent-based paints, water-based paints, UV paints, and spray adhesives.


Components of Standard Dry Spray Room


  • Spraying Equipment Options:Configurable with 6-axis spraying robots, single-axis or multi-axis reciprocators.


  • Spray Tools:Configurable with air spray guns, electrostatic spray guns, or adhesive spray guns, with options for single or multiple guns.


  • Conveyance Equipment:Configurable with various spraying turntables, spraying sliding tables, step-type floor chains, synchronous floor chains, or skid conveyor lines.


  • Paint Mist Collection & Treatment Methods:Dry spray booths or water curtain spray booths.


  • Curing Ovens:In-line tunnel ovens, vertical integrated ovens, standalone batch ovens, or UV ovens.


  • Curing Oven Heating Methods:

  • Electric heating: Infrared tubes, direct electric heating tubes, electric heating tubes with hot air circulation, or radiant ovens.


  • Natural gas: Hot air circulation, boiler steam heating, or radiant ovens.


  • UV curing: UV ovens for UV paints, including specialized spray machines for automotive lights.


  • Workpiece Surface Cleaning Methods: CO₂ snow cleaning, water washing, or manual wiping.


Core Competitiveness


01

Compact footprint and low energy consumption.

02

High flexibility, suitable for rapid product changeovers.

03

Modular design, short installation and debugging time, relocatable.

04

Multiple configurations and options, adaptable to a wide range of spray painting applications.

05

Modular design, simple operation, low failure rate, and easy maintenance.


Standard Dry Spray Room Applications


Application Scenarios

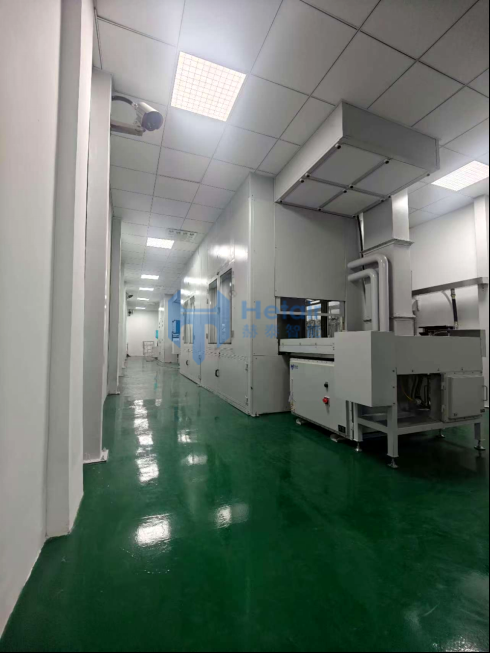

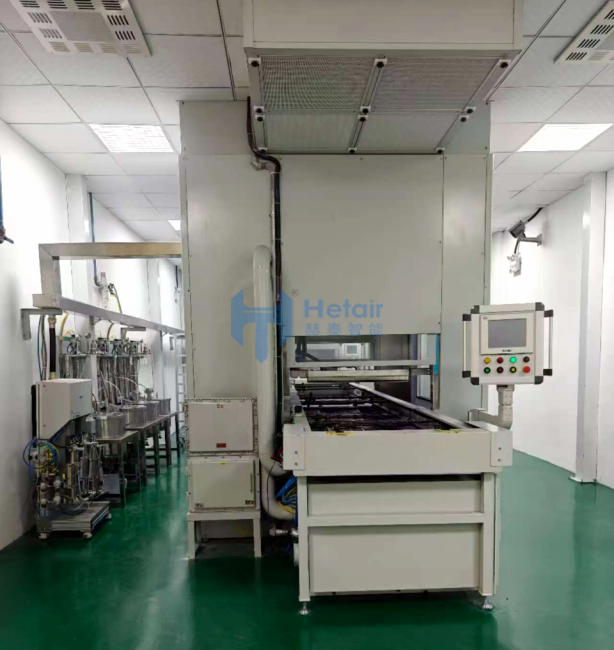

standard-dry-spray-room-applications-bulk.png     standard-dry-spray-room-applications-china.png

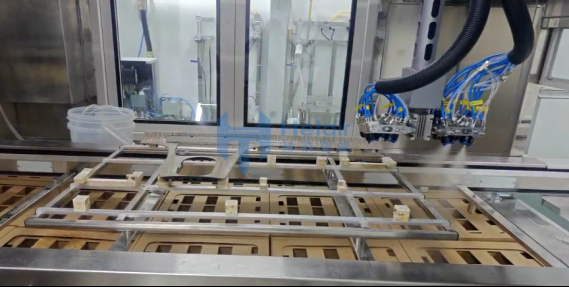

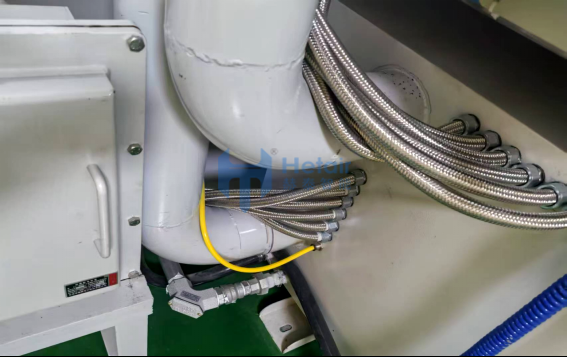

standard-dry-spray-room-applications-company.png    standard-dry-spray-room-applications-factory.png






Related Spraying Booth

CCRobot Standard Spray Station
CCRobot Standard Spray Station
Dust-Free Purification Workshop Factory
Dust-Free Purification Workshop Factory
